Progetto S30 Low Height Full Frame Inwall Cistern


| /


The Progetto concealed cistern range provides a solution for all installation requirements and includes pneumatic & mechanical flush options, in-wall, under bench and remote cistern mounting options and a large range of modern flush panels and buttons.

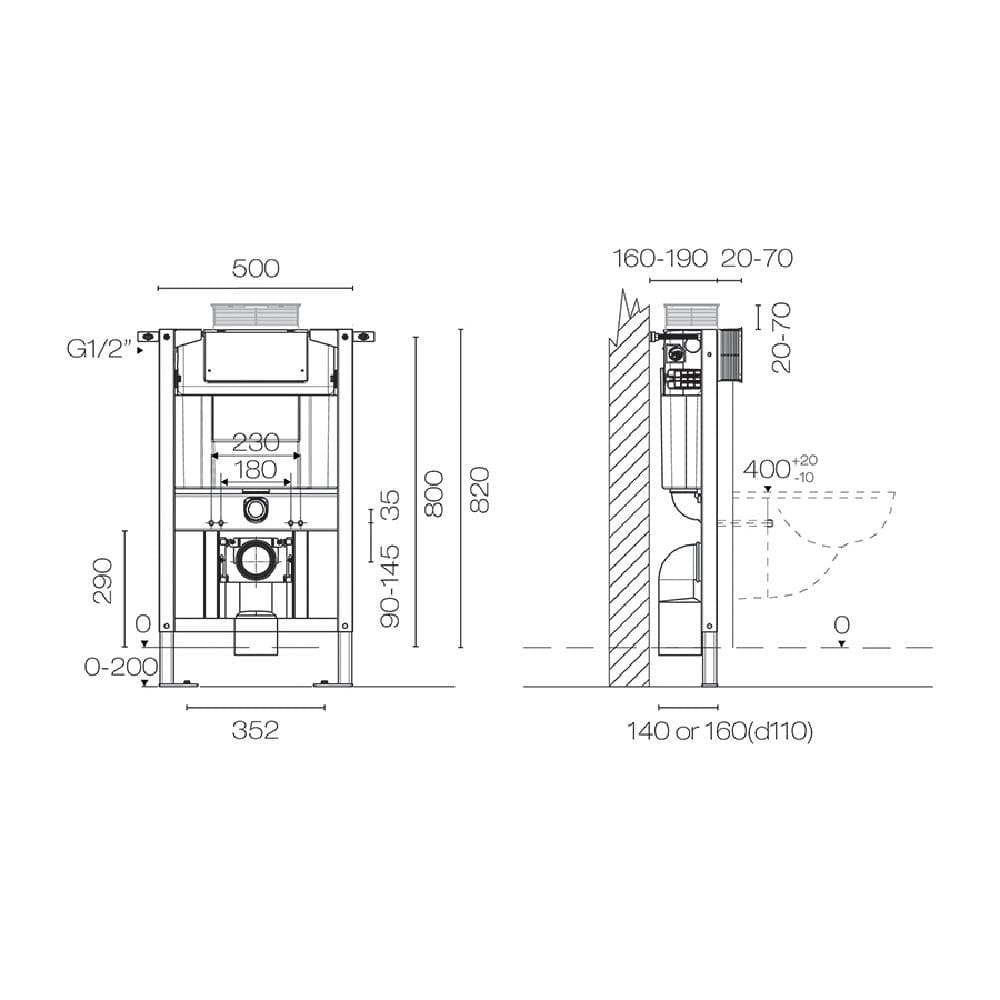

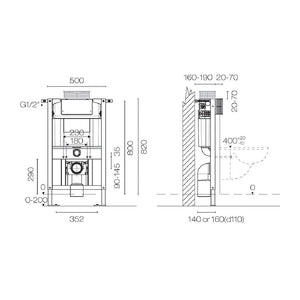

500mm W x 160mm D x 820mm H

  • Brand: Progetto
  • 4 Star WELS water rating
  • 10 year warranty
  • Concealed inside wall cavity, directly behind toilet pan
  • Includes 90mm S trap pan connector (fits into 100mm PVC pipe)
  • Suits under bench vanity mounting or inside wall cavity (especially good for low height requirements)
  • Wall cavity thickness required: 140mm
  • Minimum heigh to top of cistern: 820mm
  • Frame tested for 400kg load
  • Flush panel can be remotely mounted up to 2.5m from cistern
  • Suitable for top or front mounted flush panels
  • Designed for wall hung toilet pans
  • 4 Star WELS rating (4.5/3 litre dual flush) can be adjusted to 6/3 litre flush

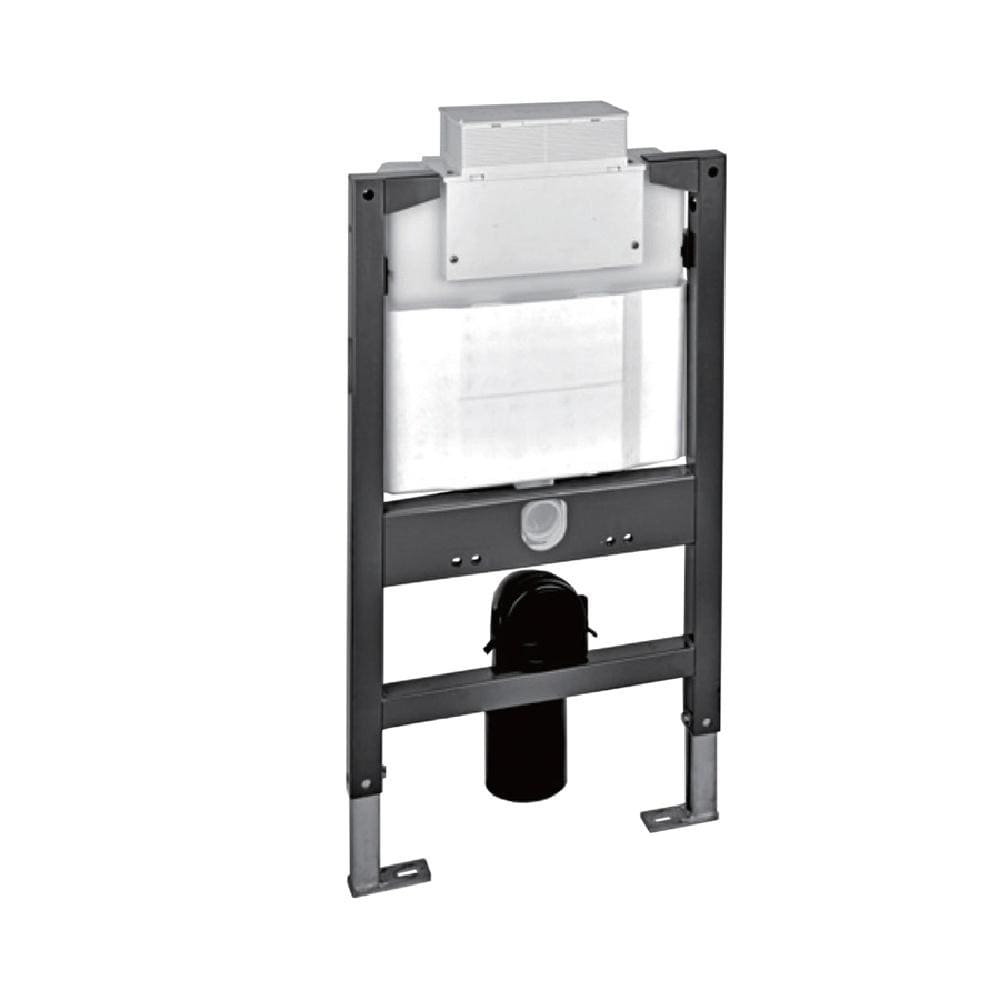

  • Cistern pre-assembled into height adjustable steel frame making an extremely quick and simple installation - no extra pan bracket required
  • Only compatible with Como and Mod flush panels

Note: Not suitable for use with Catalano Sfera and Green Lux toilet pans.
